New VGT Actuator, Same Problem? Here’s Why

Most of the time, when a turbo starts acting up, the first thought is to replace the actuator. But what happens when the vehicle still has the same issue even after a new actuator is installed? Maybe the new actuator was not calibrated correctly, but what if it was? One common reason is that the turbo itself can damage a brand-new actuator. Why? The vanes inside the turbo may already be jammed.

Table of Contents

Why a New Actuator Can Fail Again

Let’s assume you want to buy 6382096 part, one of the more common actuators used on 6.7L Cummins Ram applications. The Cummins technical bulletin available through Wisent Parts Center shows that proper installation and sector gear position matter, but even a correctly installed actuator still depends on the turbo mechanism moving freely.

If the vanes inside the turbo are already sticking from soot or carbon buildup, the new actuator has to fight that resistance every time it tries to move them. That can cause the same symptoms to return and, over time, can put enough strain on the replacement actuator to damage it again.

What Causes the Vanes to Stick?

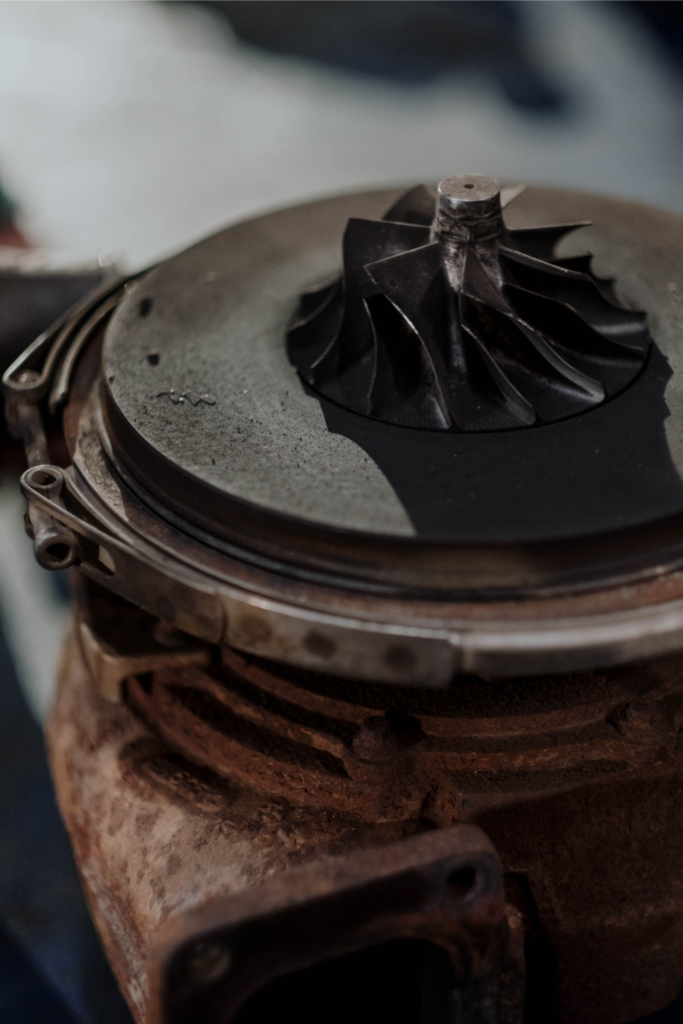

The VGT mechanism works directly in the exhaust stream, so soot and carbon naturally build up inside the turbo over time. As those deposits collect around the moving vanes, they can start restricting their movement.

What to Check Before Installing Another Actuator

Before another actuator goes on, check that the turbo vane mechanism moves freely. If it feels stiff, binds, or will not move through its normal range, the turbo itself needs attention first.

A quick check should include:

Vane movement
Soot or carbon buildup
Sector gear position
Signs of binding or resistance

Before You Replace the Actuator Again

In the end, replacing the actuator only solves the problem if the turbo itself is still moving freely. If the vanes are jammed, the new actuator can end up fighting the same resistance as the old one. Checking the VGT mechanism first can prevent repeat failures, wasted parts, and the same turbo problem coming right back.
